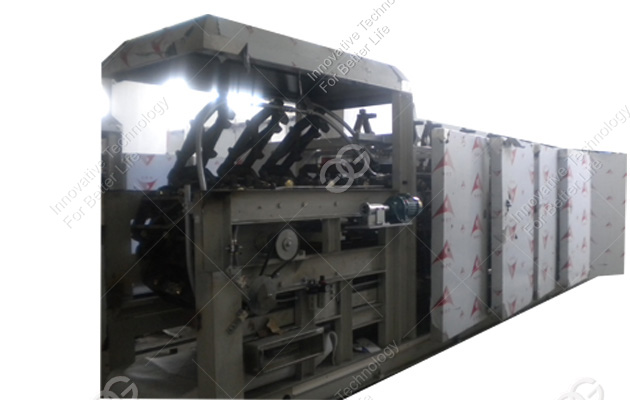

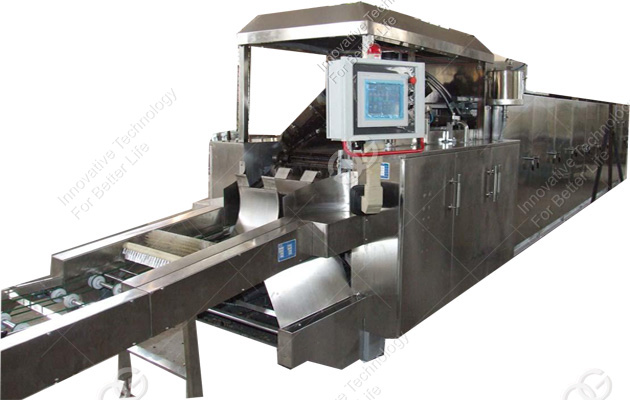

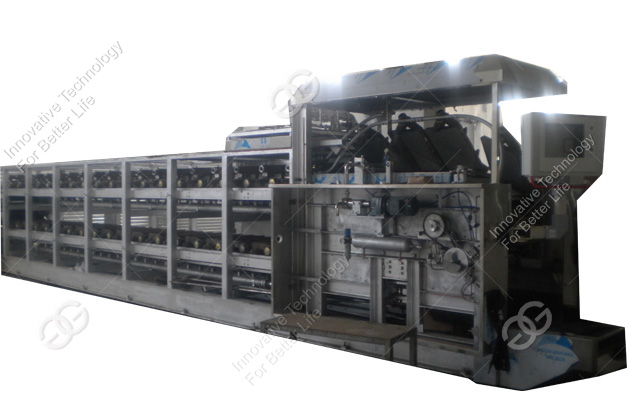

Wafer Baking Machine
- MOQ:1 set /Sets
- Brand:Gelgoog Machinery
- Certification: CE
- Supply Ability: 100 sets/Per Month
- PAY METHOD: WEST UNION L/C T/T CASH
- Warranty Time: 12 Months
- LOADING PORT: Qingdao
- Country Of Origin: China
Features
Introduction:
This machine is mainly used for baking wafer sheet .This is electric type wafer heating oven . Adopting hearing-medium conduction technology with heating oil as medium,the plant is a new generation product developed exclusively in China based on the advanced structure of existing plants from domestic market and abroad.If offers an ideal solution for lower power consumption and overall production cost,and keeping the same surface color for all biscuits
Production line with two kinds of modes,one is GAS Heating and the other is Electric Heating ,which has the main function as follows :energy saving ,high production capacity ,high automation ,high recycle ,having long working life ,convenient operation ,few operators ,up to the national standard of energy saving and no pollution.
Advantages:
1. The whole shell of the production line adopts 304 Stainless Steel in accordance with the health and safety standard.
2. The electricity and transmission components are all used Siemens ,Mitsubishi ,touch screen to control and adopts the International Brand Germany SEW,SKF to make the whole line steadily.
3. In according to the clients ' requirements ,we can make a wide range of size and shape cream (chocolate ) filled wafer biscuit full automatically.
4.Unanimous heat colors of wafer block. Thanks to the scientific selection of heating components, superior material selection for baking plate and reasonable die carrier structure, the heat colors of the center and periphery of the wafer block having been baked are unanimous.
5. High rate of certified products with finished product rate of not less than 98%. Because of uniform heating and unanimous heat colors, the demoulding rate of biscuit is high with improving rate of certified products accordingly.
Technical Data
|
Model |
GGDL-39 |
|
Heat source |
Gas |
|
Moulds quantity |
39 |
|
Moulds size |
470*325*25mm |
|
Size of wafer stripe |
3.0*3.0*0.5 |
|
Wafer thickness |
2.0－3.0mm |
|
Baking time |
95~120 seconds（the thickness of wafer<2.5mm） |
|
Capacity |
1470 pieces/h（the thickness of wafer:2.3mm） |
|
Component materials in contact with food |
304 # stainless steel or cast iron |
|
PLC |
Siemens |
|
Main Power |
1.5kw |
|
Voltage |
3-phase，380V，50 Hz |
|
Max Power consumption |
110kw |
|
Dimension |
7820*1560*2320mm |
|
Weight |
9300kg |
