Full Automatic Wafer Cone Making Machine Model M

Introduction:
Model M: full automatic wafer cone making machine has two pieces of wafers on each baking plate.It can make the cones from 60mm to 110mm.
And we can design and make other models and specifications according  to the different requirements from the client.
The same machine can make different products within round biscuit,sugar rolled cone, egg roll with changing the different forming devices.

Features:

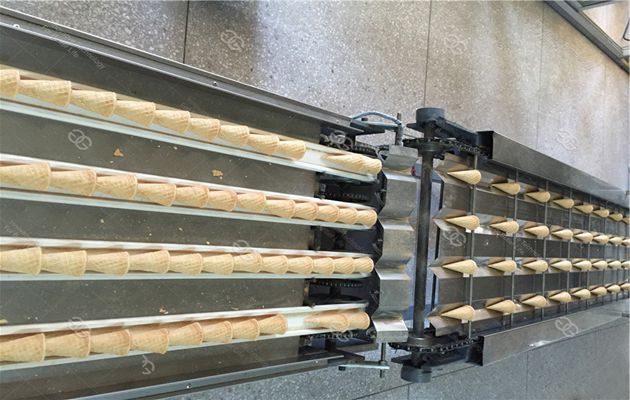

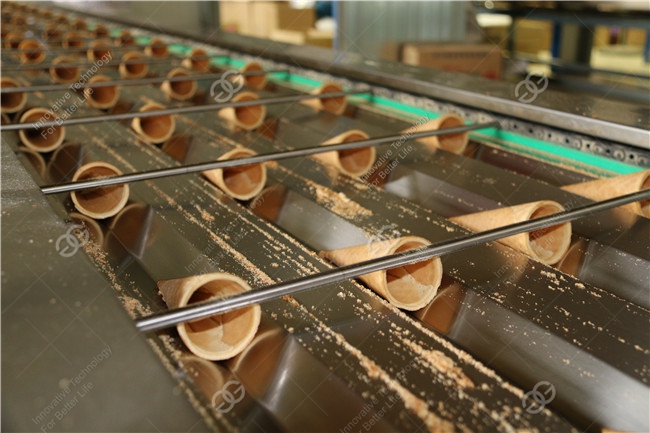

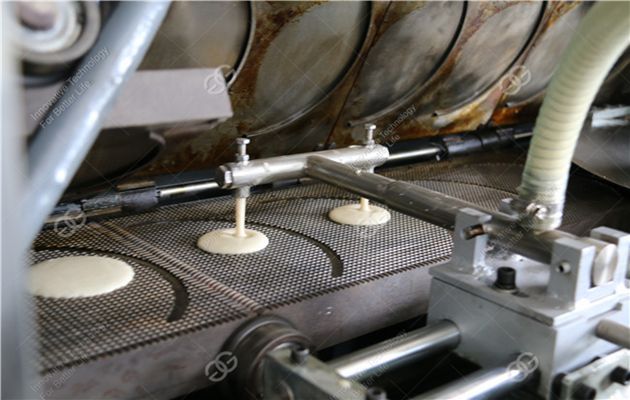

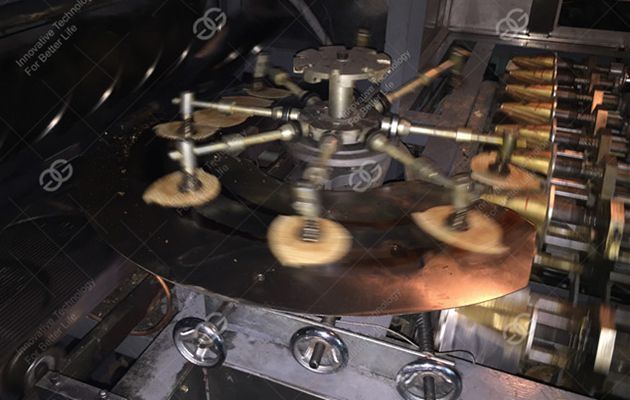

Full automatic filling paste,baking,rolling and conveying-cooling-counting.
The same machine can make different products within round biscuit,sugar rolled cone, egg roll with changing the different forming devices.
Different size,angle,thickness,depth ice cream cone can be customized.
Electric heating and gas heating can be choose

Model	Dimension	Drive Motor	Rolling System Motor	Air blower	Gas Consumption	Capacity	Weight
GG107-24M	8.86*1.90*1.65	1.5KW	0.37KW	1.5KW	9-11 kg	6600-7000	5000
GG79-20M	7.9*1.90*1.65	1.5KW	0.37KW	1.5KW	7-9 kg	6600-7000	4600
GG61-16M	7.1*1.90*1.65	1.1KW	0.37KW	1.1KW	6-7kg	4600-5000	4000
GG53-16M	6.40*1.90*1.65	1.1KW	0.37KW	1.1KW	5-6kg	3600-4000	3600
