Full Automatic Ice Cream Cone Machines
  • rolled cone machine
  • rolled cone making machine
  • Automatic rolled cone production line

Full Automatic Ice Cream Cone Machines

  • MOQ:1 set /Sets
  • Brand:Gelgoog Machinery
  • Certification: CE
  • Supply Ability: 100 sets/Per Month
  • PAY METHOD: WEST UNION L/C T/T CASH
  • Warranty Time: 12 Months
  • LOADING PORT: Qingdao
  • Country Of Origin: China

Features

Product Introduction:
Model A: full automatic ice cream cone making machine has two pieces of wafers on each baking plate. It can make the cones within145mm long, not include the angle, weight, thickness, figure and depth of the crisp bowl. And we can design and make other models and specifications according to the different requirements from the client.
the same machine can make different products within round biscuit, sugar rolled cone, egg roll with changing the different forming devices.

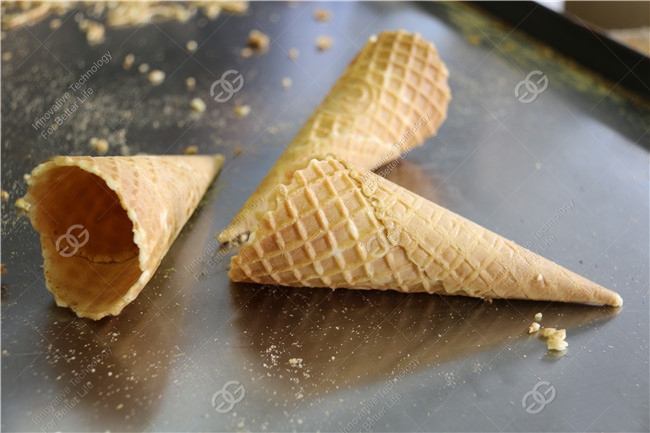

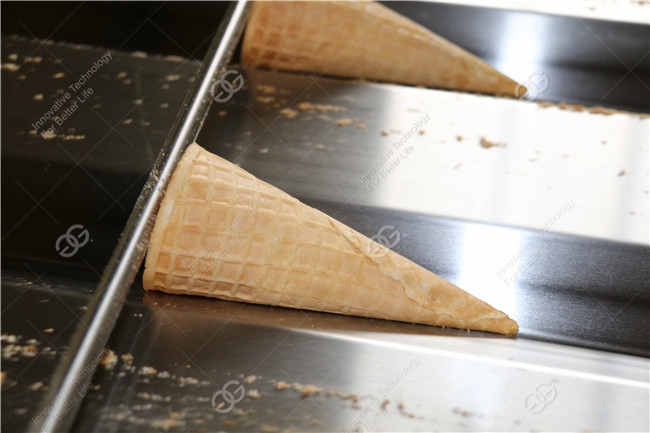

waffle cone
Product Features:

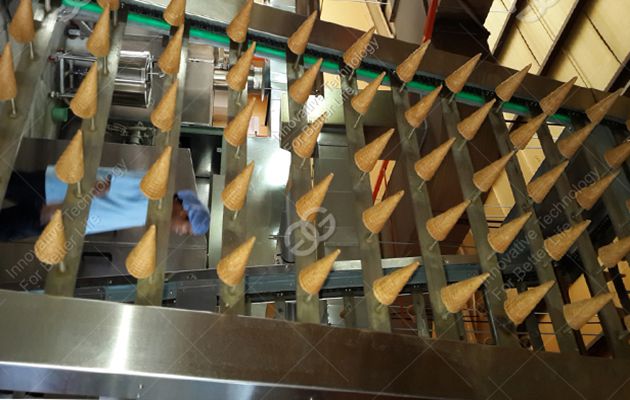

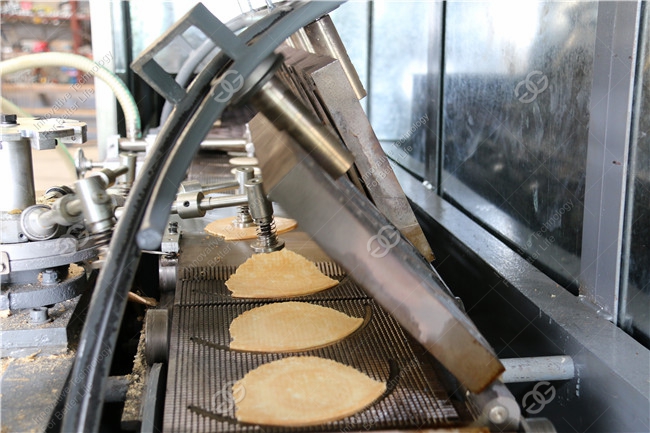

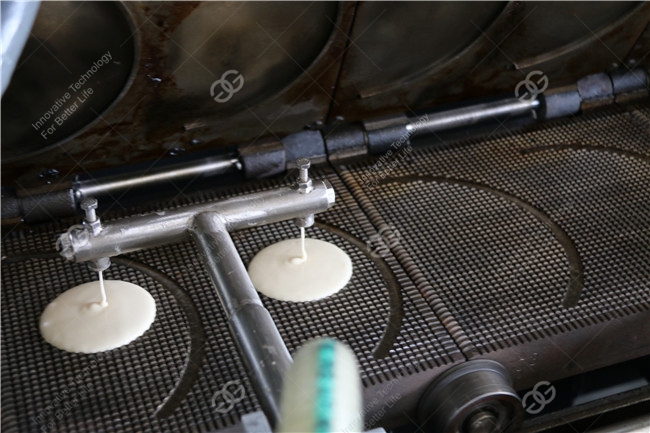

Full automatic filling paste,baking,rolling and conveying-cooling-counting.
The same machine can make different products within round biscuit, sugar rolled cone, egg roll with changing the different forming devices.
Cone size within 145mm long can be customized according customer’s requirements, such as angle,width,depth,figure and thickness.
Electric heating and gas heating can be choose.

Technical Data

Model Dimension Drive Motor Rolling System Motor  Air Blower Gas Consumption Capacity Total Weight
GG75*2-30A 13.52*1.9*1.73 2.2KW 0.37KW 2.2KW 12-15kg/h 7500-8000pcs/h 7200kg
GG61*2-24A 11.32*1.9*1.73 1.5KW 0.37KW 1.5KW 10-12kg/h 6500-7000pcs/h 5800kg
GG53*2-20A 9.8*1.9*1.73 1.5KW 0.37KW 1.5KW 8-10kg/h 5500-6000pcs/h 5300kg
GG45*2-16A 8.52*1.9*1.73 1.5KW 0.37KW 1.1KW 6-7kg/h 4500-5000pcs/h 4800kg
GG37*2-16A 7.05*1.9*1.73 1.5KW 0.37KW 1.1KW 5-7kg/h 3500-4000pcs/h 4200kg
