65 Moulds Wafer Biscuit Production Line for 250kg/h
- MOQ:1 set /Sets
- Brand:Gelgoog Machinery
- Certification: CE
- Supply Ability: 100 sets/Per Month
- PAY METHOD: WEST UNION L/C T/T CASH
- Warranty Time: 12 Months
- LOADING PORT: Qingdao
- Country Of Origin: China
Features

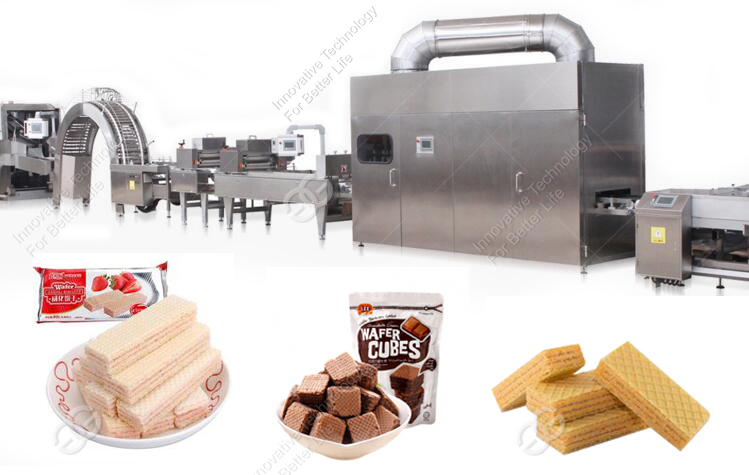

Features of wafer biscuit production line:
The function of the baking oven is fully automatic from spreading batter on the plates through until baked wafer sheets come out of the oven.
Adopting hearing-medium conduction technology with heating oil as medium,the plant is a new generation product developed exclusively in China based on the advanced structure of existing plants from domestic market and abroad.If offers an ideal solution for lower power consumption and overall production cost,and keeping the same surface color for all biscuits.The plant mainly consists of mixing system,automatic feeding system, tunnel-type oven, sheet feeding and cooling device,coating machine,cutter and organic heating medium boiler, etc.With compact structure and unique reliability, the plant is one of the most preferred equipments in foodstuff industry.
Except the oven mould, the machine contact food part all is made of stainless steel, we also can customize the whole stainless steel production line.
The electric controlling model is safe, easy to operate. It also is environment protection model.
Advantages of wafer processing plant:
Reliable performance, stable operation, long service life. All motor, electrical equipment ,PLC, bearing adopts international and Chinese famous brand
Reasonable layout, compact structure, small occupation, the body length of the baking oven is only 2/3 of the same type of product.
High automatic, stand-alone machine can be controlled separately, simple operation and easy maintenance
High demoulding rate and finished product rate of no less than 98%
Special energy conservation design, low energy cost, can reduce pollution to an extreme
Machines’ material comply with food hygiene standard, all parts which is connected with food are adopt stainless steel
We have several kinds of moulds which can produce different flower shape.
Technical Data
Type 63Wafer Biscuit Product line |
Capacity:6T/24H |
NAME |
QUANTITY |
POWER
(kw) |
WEIGHT(kg) |
SIZE(MM) |
Blender Machine |
1 |
3.75 |
300 |
1910*1080*900 |
cream mixer |
1 |
5.6 |
600 |
1570*700*1455 |
63 moulds electric oven |
1 |
250 |
14000 |
13000*1500*2500 |
Wafer sheet cooling machine |
1 |
|
100 |
2660*780*1380 |
cream spreading machine |
1 |
3.05 |
850 |
4015*1120*1440 |
converyor |
1 |
0.3 |
150 |
1100*665*725 |
Wafer cutting machine |
1 |
0.75 |
500 |
2360*2030*1040 |
Crusher Machine |
1 |
1.1 |
150 |
900*700*900 |
BISCUIT PACKAGING MACHINE |
3 |
3 |
500 |
3945*840*1500 |
